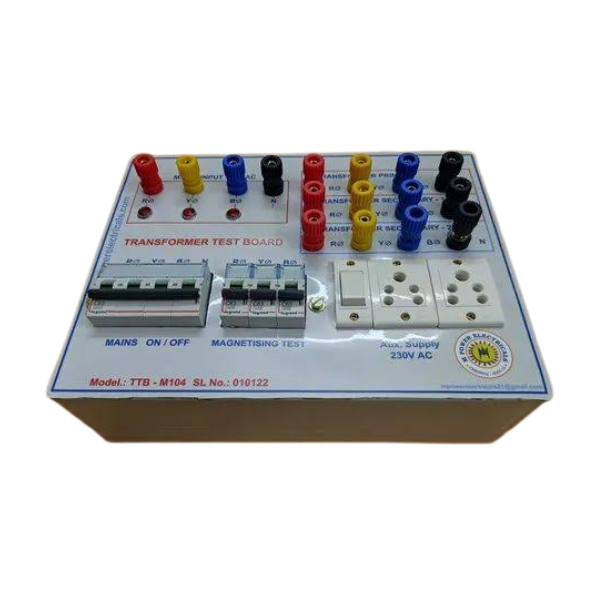

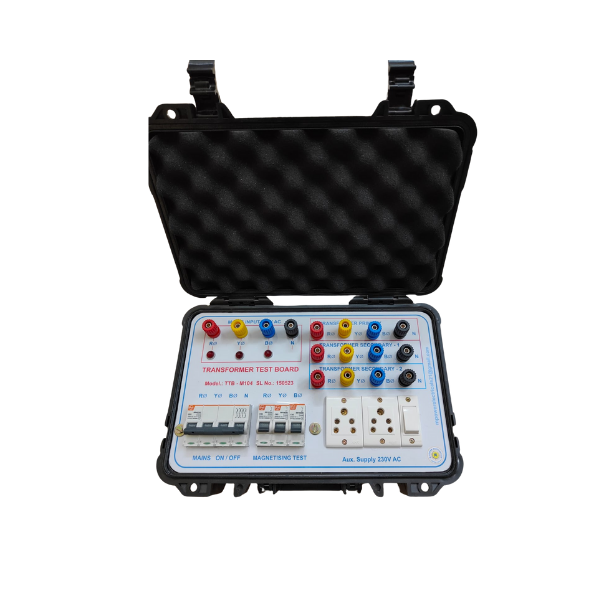

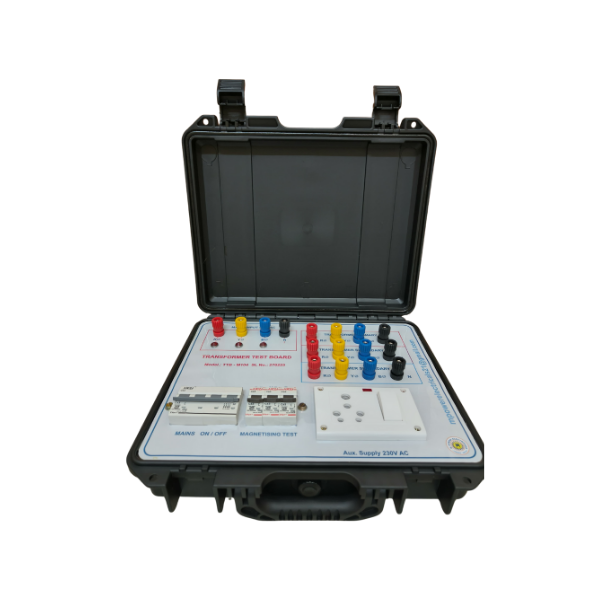

Transformer Test Board-TTB-M104 Series

Transformer Test Board-TTB-M104 Series

Transformer Test Board-TTB-M104 Series

Brief Description:

The TTB-M104 Transformer Test Board is designed to provide a comprehensive and efficient testing solution for transformers, ensuring they operate safely and at peak performance. This advanced testing system incorporates essential tests, including the Voltage Ratio Test, Magnetizing Current Test, Magnetic Balance Test, and Vector Group Test. With this tool, users can accurately measure and analyze key transformer parameters, enabling precise diagnostics and maintenance planning.


Product Detail

Specifications



Specification Details
Input Voltage 415V AC, 50Hz (±10%)
Panel Comprising 1) Mains Input 2) Transformer Primary 3) Transformer Secondary 1 4) Transformer Secondary 2 5) Input Indications (R, Y, B) 6) Auxiliary Supply (Single Phase)
Rated Current 63A / 32A
Grade Manual Operation
Protection Overload and Short Circuit MCB
Enclosure Polypropylene Case / ABS Box
Weight 2Kg





Note:
The specifications and data provided may undergo modifications due to ongoing research and development.
