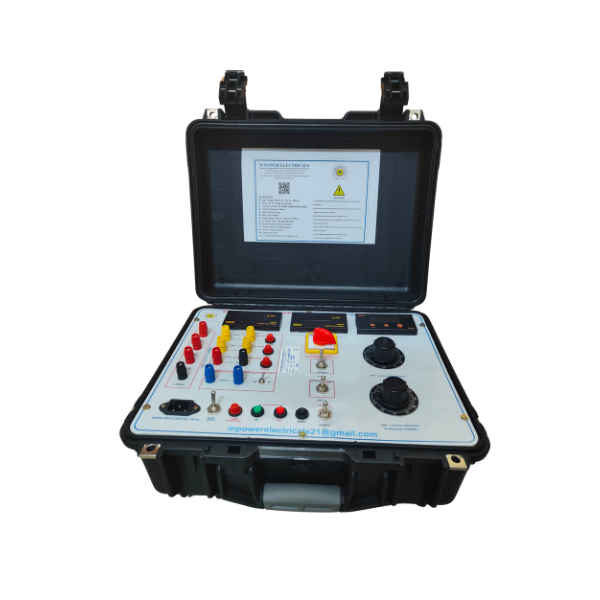

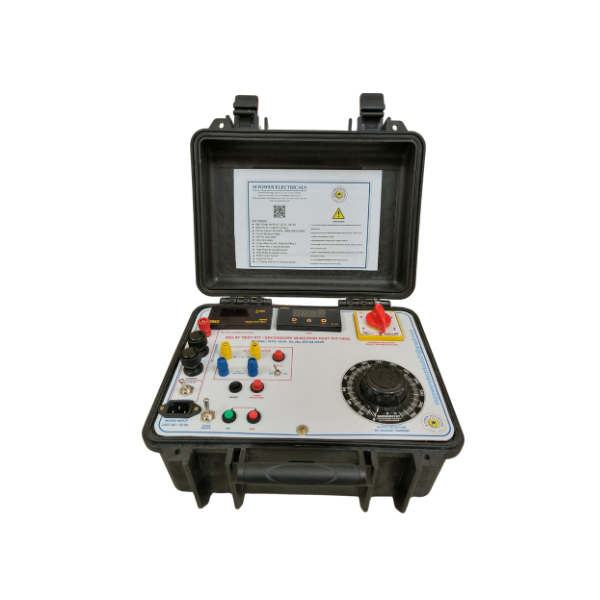

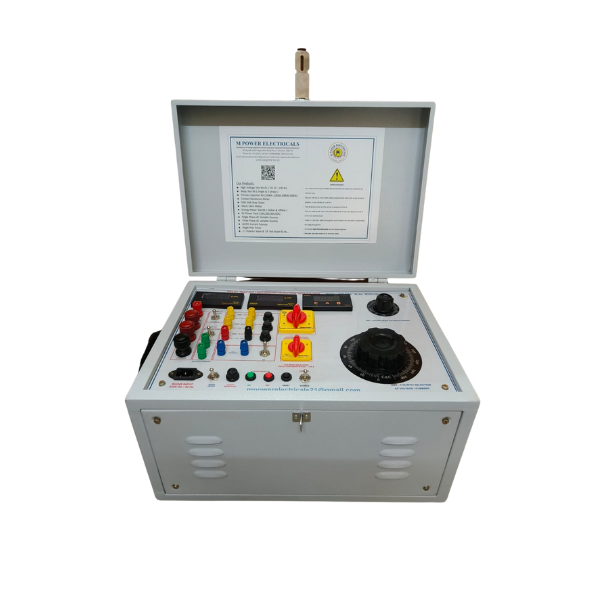

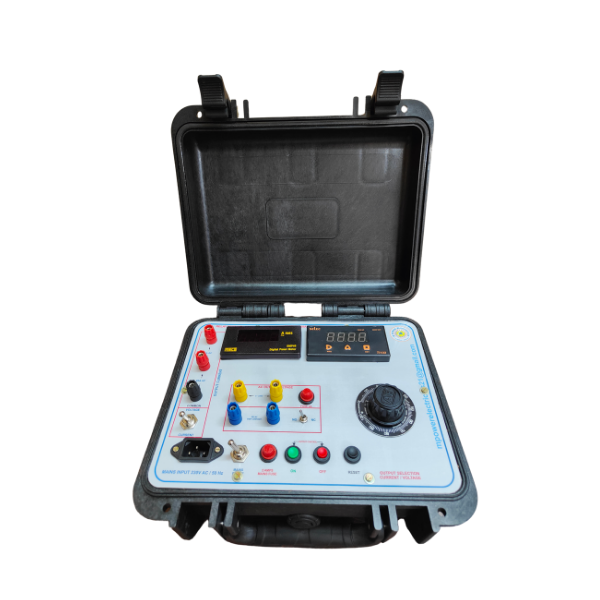

Single Phase Relay Test Kit/Secondary Injection Test Kit-1A,20A,30A,50A,100A(Customizable)
Feature
Description
Adjustable Voltage and Current
Up to 230V and 200A for fault simulation.
Compatibility
Supports electromechanical, solid-state, and microprocessor-based relays.
Integrated Overcurrent Protection
Ensures safe testing and prevents equipment damage.
Rugged, Portable Design
Suitable for both field and laboratory use.
Real-Time Monitoring
Tracks voltage, current, and time delay during testing.
High Accuracy
Provides consistent and precise relay testing.
Single Source Model RTS-20A RTS-50A RTS-100A Output AC Current (Customizable) 1A,5A,10A,20A 1A,5A,10A,25A,50A 1A,5A,10A,25A,50A,100A O/P AC Voltage (Customizable) 0-230V AC@1A 0-23V AC@2A 0-230V AC@2A Dual Source Model RTD-20A RTD-50A RTD-100A Unit-1 Output AC Current (Customizable) 1A,5A,10A,20A 1A,5A,10A,25A,50A 1A,5A,10A,25A,50A,100A O/P AC Voltage (Customizable) 0-230V AC@1A 0-230V AC@2A 0-230V AC@2A Unit-2 O/P AC Voltage 0-230V AC@1A 0-230V AC@1A 0-230V AC@1A O/P DC Voltage 0-300V DC@1A 0-300V DC@1A 0-300V DC@1A O/P AC Current (Optional) 0-5A AC 0-5A AC 0-5A AC
Specification
Details
Input
230V AC, 50Hz ±10%
Timer
0.0001 - 9999 Sec
Timer Accuracy
±0.05% ±2 Counts
Meter Measurement Accuracy
±1.5% ±2 Counts
Voltage Resolution
±1V
Duty Cycle
30 Min ON / 5 Min OFF
Protection
Overload and Short Circuit HRC Fuse
Enclosure
Polypropylene Case (IP-65) / Mild Steel Box (Optional)
Note: The specifications and data provided may undergo modifications due to ongoing research and development.
