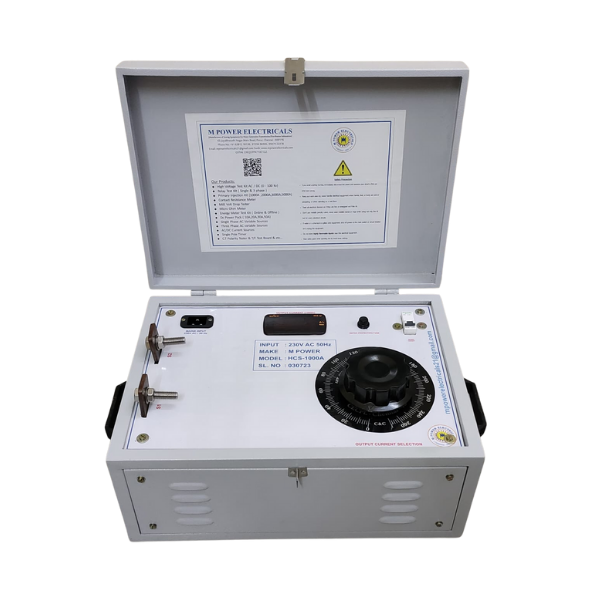

AC Variable Current Source

AC Variable Current Source

AC Variable Current Source

Brief Description:

 Our AC Current Source Instrument is designed to provide accurate and stable current outputs for single-phase and three-phase systems. This versatile device is an essential tool for testing, calibration, and diagnostic tasks in power systems, substations, and industrial applications.



Application Area Purpose
Testing and Calibration of Current Transformers (CTs) Ensures accurate current measurement and protection.
Verification of Relay Settings in Protection Schemes Confirms correct relay configuration for fault detection.
Assessment of Overcurrent Protection Devices Validates response times and trip characteristics.
Testing of Three-Phase Power Meters and Instruments Ensures accuracy in energy measurement and monitoring.
Evaluation of Motor Starters and Related Equipment Assesses performance and response during motor operation.
Simulation of Load Conditions for Substation Diagnostics Identifies issues and verifies system stability under various loads.
R&D Testing for Single and Three-Phase Electrical Systems Supports innovation and performance testing for new technologies.




Product Detail

Specifications



Specification Details
Mains Input Single Phase: 230V AC, 50Hz ±10%Three Phase: 415V AC, 50Hz ±10%
Current Output Single Phase: 0-100A AC (Customizable)Three Phase: 0-100A AC Each Phase (Customizable)
Voltage Rating 0-10V (Customizable)
Output Metering Single & Three Phase Ammeter
Meter Accuracy 0.5% ±2 Count
Current Accuracy ±100mA
Cooling Type Force Air Cooled
Grade Manual Operation
Protection Overload and Short Circuit MCB
Enclosure Powder-coated mild steel box with carrying handle



Standard Accessories

  • Power cord
  • Connecting Cables (Optional)
  • Test Certificate











Note:

         The specifications and data provided may undergo modifications due to ongoing research and development.
