DC High Voltage Test Kit

DC High Voltage Test Kit

DC High Voltage Test Kit

Brief Description:

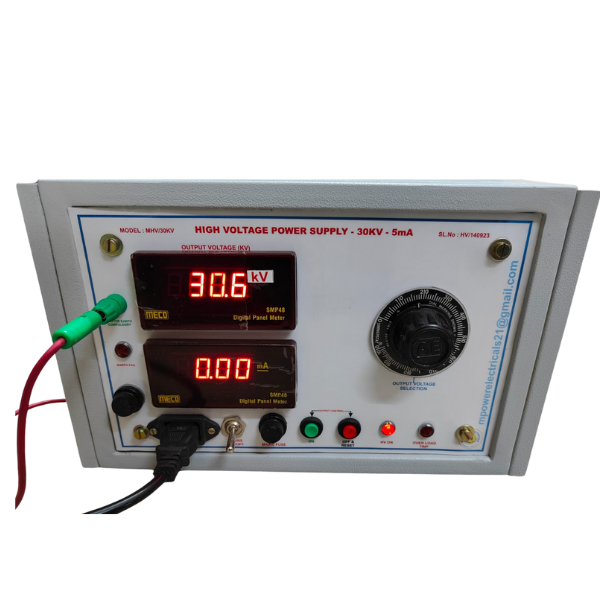

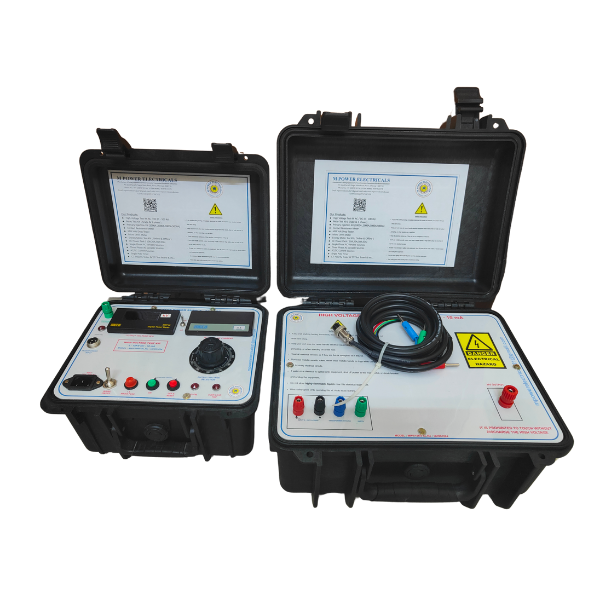

The DC Hi-Pot Test Kit is a compact and reliable high-voltage insulation testing device designed to assess the dielectric strength of electrical equipment. It provides precise DC high-voltage output, making it ideal for testing power cables, electrical components, and insulation systems in industrial, laboratory, and field applications. This kit ensures safety, accuracy, and ease of use, making it an essential tool for professionals in electrical testing and maintenance.


Product Detail

Specifications



Specification Details
Power Supply 230V AC, 50Hz ±10%
Rated Output Voltage 30kV (Customizable)
Rated Output Current 5mA (Customizable)
Resolution 0.001 to 1 Count
Transformer Accuracy ±1kV (Full Load)
Meter Accuracy 0.5 / 1.0 Class
Environment Temperature -10°C ~ 50°C
Panel Meters kV, mA DC Meter
Housing i) Control Unit - Polypropylene Case ii) Transformer Unit - Polypropylene Case
Weight i) Control Unit - 2kg ii) Transformer Unit 30kV - 6kg
Timer 0 - 9999 Sec



Standard Accessories

  • Transformer Interconnecting Cables
  • Power Cord
  • Earth Cables

Optional Addons

  • DC Digital Voltmeter:30kV
  • DC Micro Ammeter
  • Sphere Ball
  • Discharge Rod
  • Resistor
  • HV Capacitor:0-40kV
  • Timer with Buzzer Setup





Note:

                                 The specifications and data provided may undergo modifications due to ongoing research and development.
